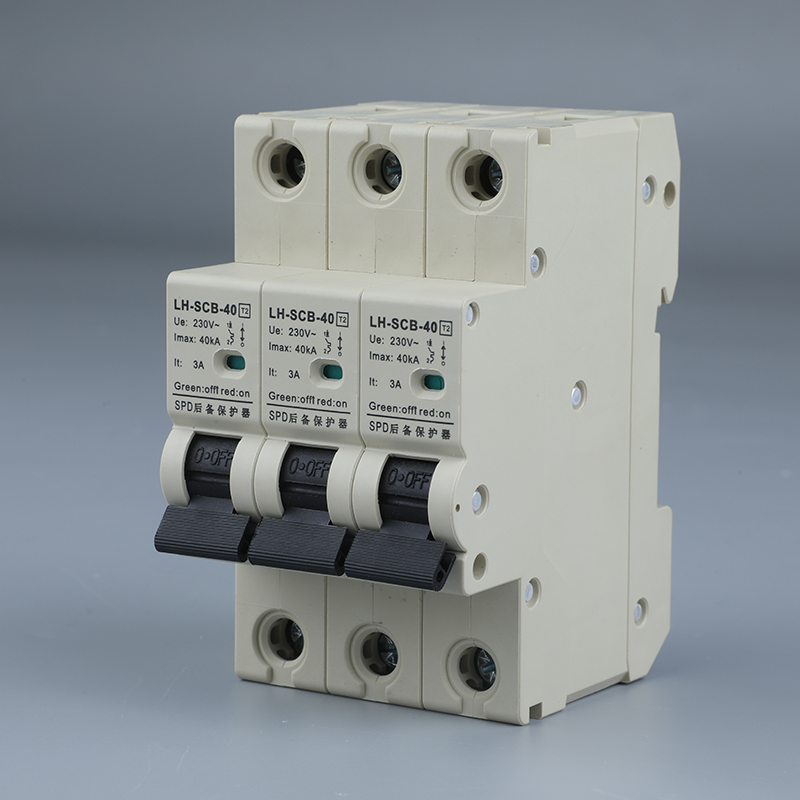

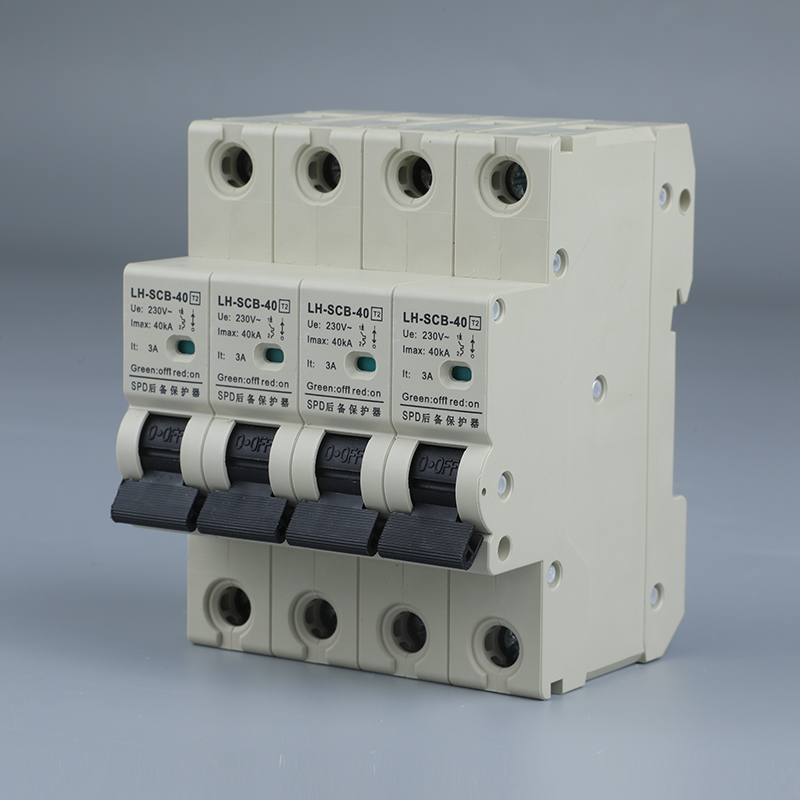

The LH-SCB series backup protector,Surge protector,Surge arrestor,Surge protection device,Lightning protector,Surge Protector for low volage power supply

The LH-SCB series backup protector is a product specially developed to provide a perfect backup protection solution for SPD. It can provide professional backup protection for level 1, level 2, and level 3 power supply lightning protection equipment (SPD surge protector).



This product solves the problem of potential safety hazards when using circuit breakers or fuses as SPD backup protection.



It is suitable for places where SPD lightning protection equipment has been installed, such as: power supply equipment in industrial and civil construction, electrical, communications, road transportation, petrochemical and other industries.

    Contact us
    product details

    Structure and working principle

    Thunder Hao SCB series backup protectors are suitable for TT, TN and other power supply systems under 50/60Hz and various voltages. It solves the problem of lightning arrester failure caused by malfunction of the backup protection device caused by lightning and ensures that the surge protector (SPD) does not catch fire, and the equipment’s lightning protection is continuously effective; at the same time, it effectively overcomes the protection blind zone problem caused by the widespread use of fuses or circuit breakers as external disconnectors. It is an ideal match for voltage switching SPD and voltage limiting SPD in low-voltage power supply systems. device. The product complies with GB/T 18802.11, IEC61643-1 and other standards.

    Install

    * Selective control of tripping mechanism segments is achieved through changes in current parameters;

    * The impulse current residual voltage is low, and the test performance is better than that of circuit breakers and fuses; the use of high-energy materials solves the problem of product service life;

    * Strong surge current tolerance and no malfunction;

    * Tripping occurs when the power frequency current exceeds 3±1A;

    * Strong operating short-circuit current breaking capability;

    * It adopts parameter control tripping mechanism and is installed on 35mm guide rail;

    * Complete specifications can meet T1, T2 and T3 level SPD matching;

    * Optional remote control alarm.

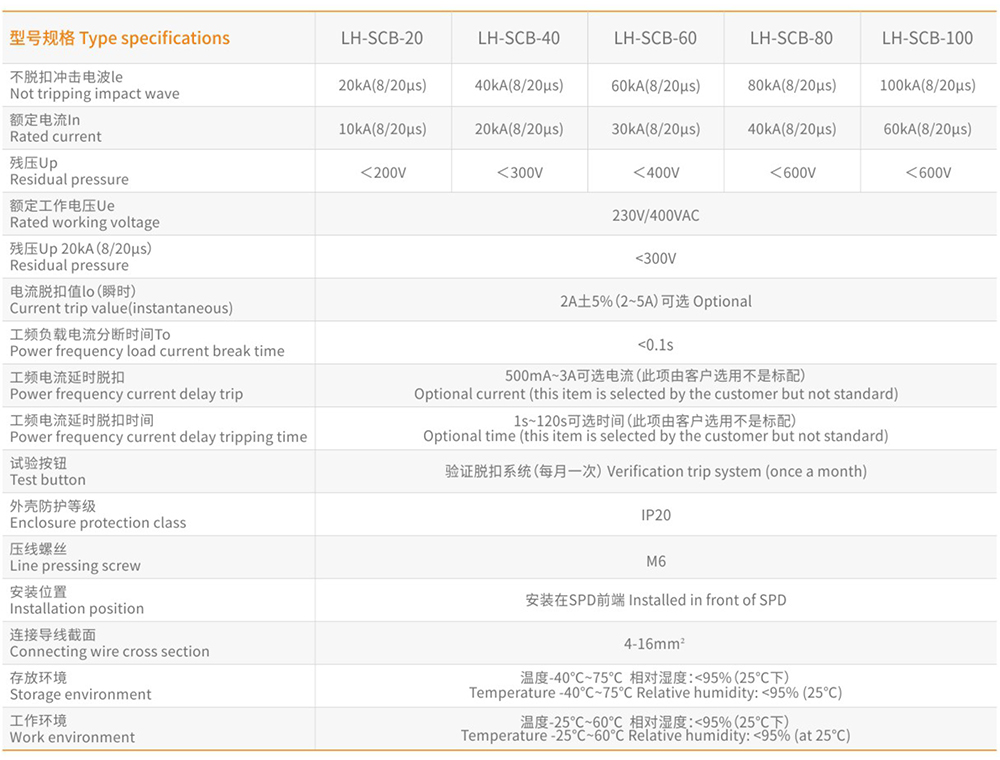

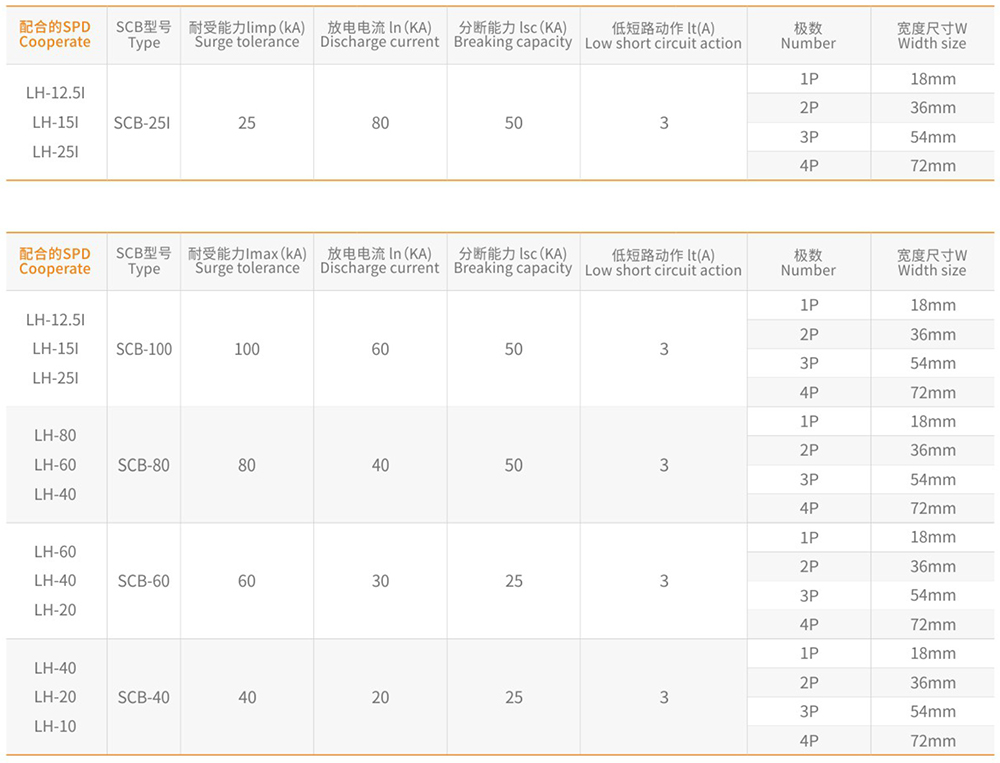

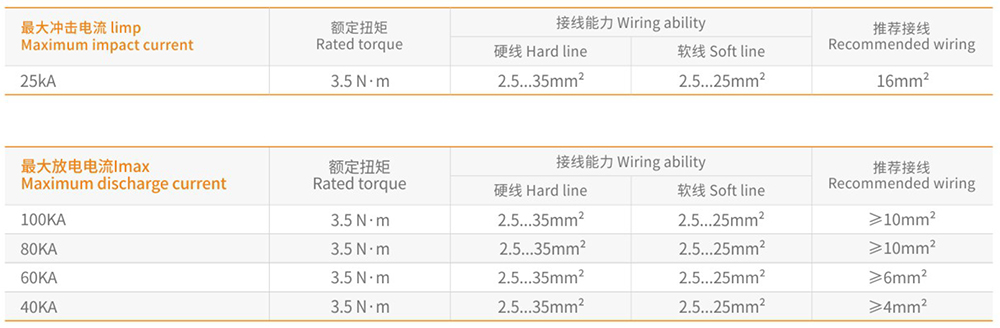

    The main technical parameters

    4r585xfp6zbw

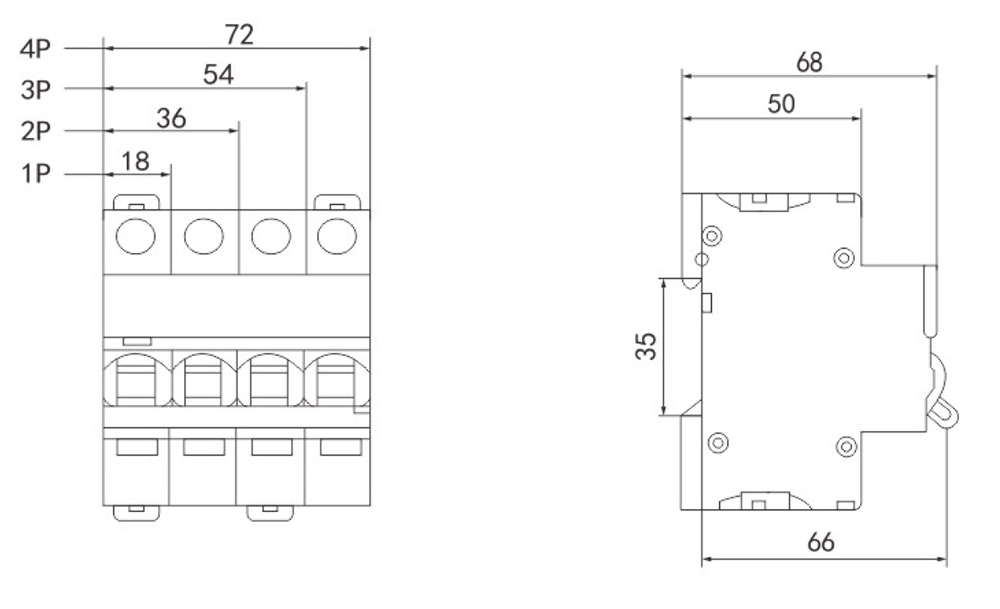

    Installation dimensions

    7akm
