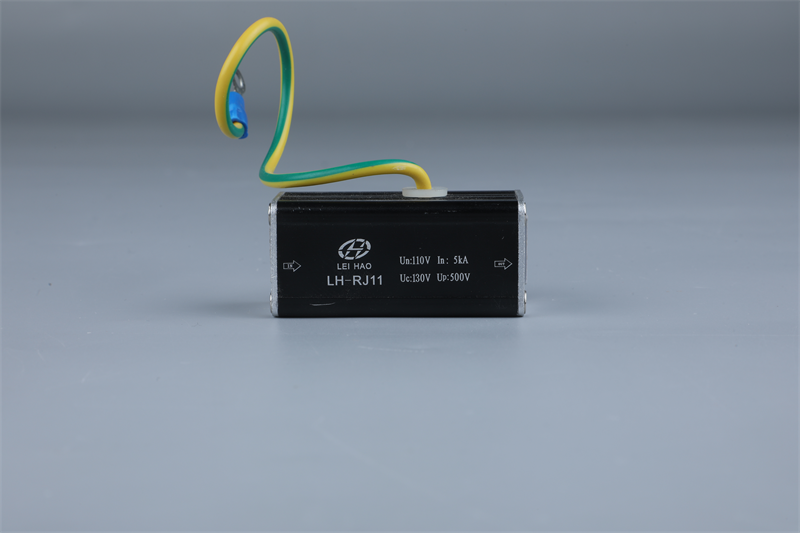

Signal Surge Protector

Un:110V
In:5kA
Uc:130V
Up:500V

Communication line surge protector is designed according to IEC and GB standards, using RJ11 / 45 universal standard interface. It can protect the signals of TELE, DDN, ISDN, ADSL and other line communication equipment, and provide high-energy coarse protection and low-energy fine protection for telecom data lines. At the same time, it also provides fine differential mode protection and common mode protection to the ground for 3,6 and 4,5 pairs of lines respectively, so as to effectively absorb the energy impact generated by the surge, and introduce the energy into the earth through the grounding cable. The integrated design reduces the protection cost and installation difficulty, saves the installation space, and selects the corresponding products according to different use places and system parameters.

LH-RJ11
