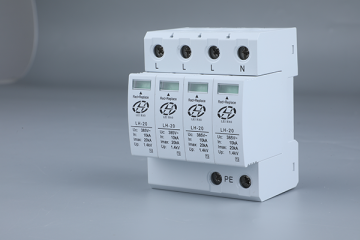

LH-BX (36 width) series surge protector (hereinafter referred to as SPD)
Structure and working principle
SPD is one port, protected against electric shock, indoor fixed installation, voltage limited type. SPD has built-in disconnector. When the SPD fails due to overheating or breakdown, the disconnector can automatically disconnect it from the power grid and give an indication signal at the same time. The visual window displays green when the SPD is working normally, and displays red after failure. It is composed of 1P, 2P, 3P and 4P combined protection modules.
Install
Installed at the junction of LPZ1 or LPZ2 zone and LPZ3 zone, it is installed using a 35mm standard guide rail, and the connecting copper multi-strand wire is 6~16mm². The grounding wire should be a two-color wire of more than 6mm², and the length should not exceed 500mm. Each pole of SPD must be equipped with protection - SCB series surge backup protection is used for short circuit protection after SPD breakdown. It is suitable for use in secondary distribution boxes such as household distribution boxes and computer equipment distribution boxes.
product description
Introducing the LH-BX (36 width) series surge protector, a cutting-edge solution designed to safeguard your valuable electronic equipment from power surges and voltage spikes. This Surge Protection Device (SPD) is engineered to provide reliable protection for a wide range of applications, including industrial, commercial, and residential settings.
The LH-BX (36 width) series surge protector is equipped with advanced surge suppression technology, offering superior protection against transient voltage surges. With its compact design and easy installation, this SPD is an ideal choice for protecting sensitive electronic devices, such as computers, telecommunication equipment, and industrial control systems.
Key features of the LH-BX (36 width) series surge protector include a high surge current capacity, fast response time, and multiple protection modes to ensure comprehensive protection against power surges. The device is also designed to provide continuous protection, automatically resetting after a surge event to ensure uninterrupted operation of connected equipment.
In addition, the surge protector is built to meet the highest safety and performance standards, with robust construction and high-quality components that ensure long-term reliability and durability. With its wide operating temperature range and versatile mounting options, the LH-BX (36 width) series surge protector is suitable for a variety of environments and applications.
Whether you are looking to protect sensitive electronic equipment in your home, office, or industrial facility, the LH-BX (36 width) series surge protector offers a dependable and cost-effective solution. With its proven performance and advanced features, this SPD provides peace of mind, knowing that your valuable equipment is protected from the damaging effects of power surges.
Choose the LH-BX (36 width) series surge protector for reliable surge protection and ensure the safety and integrity of your electronic devices.
The main technical parameters
Installation dimensions
